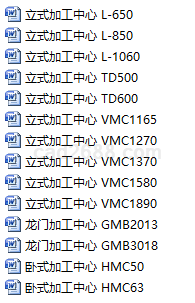

加工中心型号选型样本合集Word格式上海西格玛

上海西格玛加工中心产品样本下载Word格式产品为0元购产品，注册会员后，即可免费购买下载0元购产品，在订单详细信息中点击下载链接，下载该文件！

上海西格玛加工中心产品样本下载Word格式部分内容如下：

立式加工中心 L-650样本数据如下：

机床特点：
●床身结构坚固，能承受高速运动产生的惯量；
●高速静音丝杆，静音线轨使热变位少、精度高。
●直接高速主轴反应快，钻孔攻牙效率提高。
●三轴高速位移，可节省大量非加工时间。
●加高立柱设计，预留安装第四轴空间。
●进口三轴护罩保护丝杆线轨提高机床使用寿命。
●空调系统冷却能力保证气温高季节机床合适温度，延长机床寿命。
●前拉门和两侧门玻璃均为10mm厚夹胶钢化玻璃，提高安全性。

StructureFeature
● Rigid base with integral structure adopted
● Good durability with cast iron machine bed made through superaudio  quenching
● Good dynamic performance with advanced guide rail  laminating  technology
● High precision, high-rigidity spindle, high speed
● Sufficient precise lubrication with automatic lubrication system
● Row knife structure which can change knifes very fast, high positioningaccuracy    and simple maintenance
● Wide range of machining products due to the travel distance of X direction isup   to 270mm and variety of knife tools can be installed on themachine tool
● Spring chuck with high accuracy and high efficiency
● Good protection function with fully-closed safe glass window
● Modular design and optional accessories available on customer's needs

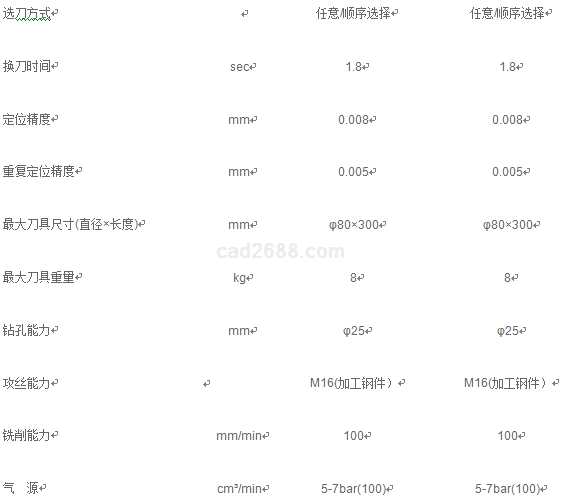

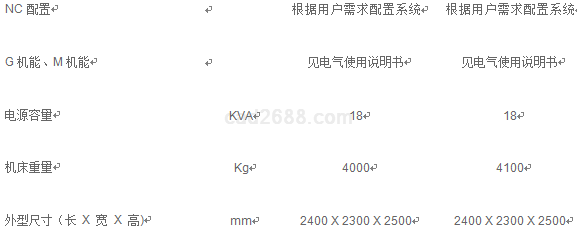

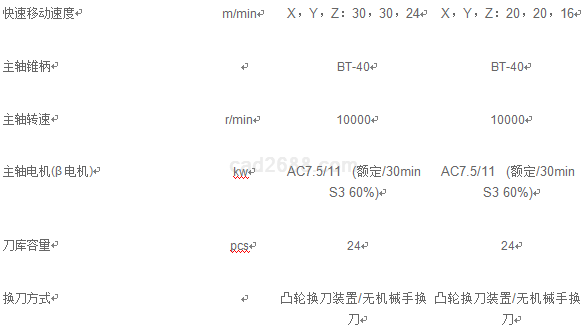

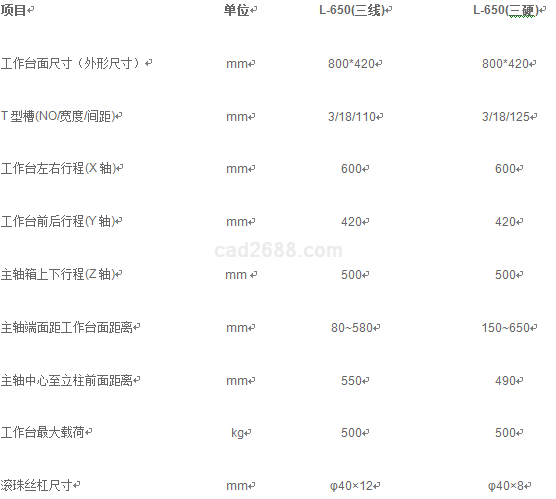

·        主要技术参数

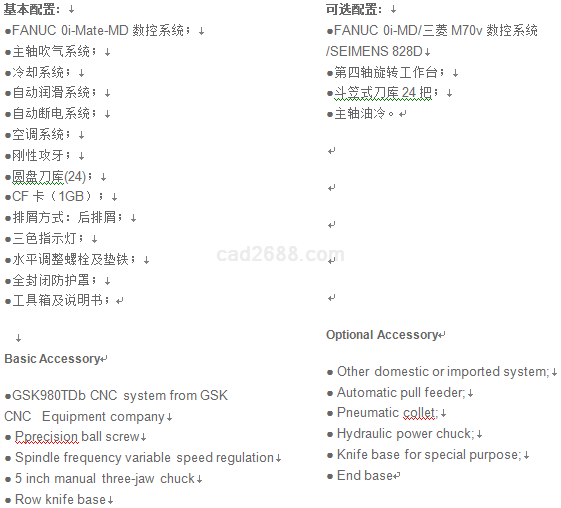

·        基本/可选配置
