产品用途：快中慢走丝线切割与雕刻,铣削编程,同时生成G代码和3B代码
[AutoCAD，中望CAD，浩辰CAD]线切割软件与雕铣软件是国内功能最为强大的线切割软件与雕铣软件，同时生成G代码和3B代码
AutoCAD全自动线切割与雕铣软件 使用说明
欢迎使用中国国内功能最强的线切割与雕铣软件.此软件在AutoCAD2004上开发,适用于AutoCAD2004及以上版本.AutoCAD2002也可运行。中望CAD，浩辰CAD 适用于2012版
这套数控线切割软件适合所有线切割机器,无论快走丝,慢走丝,国产,进口. 适合所有数控铣床，无论国产,进口.
线切割试用程序：
nc-l-arc.vlx 支持直线（line）和圆弧(arc)
nc-l-arc-pl.vlx 支持直线（line）,圆弧(arc)和多段线(pline)
Check.vlx----由G代码加工程序画出DWG图
Check3B.vlx----由3B代码加工程序画出DWG图
永久免费使用程序：
wire-circle.vlx 慢走丝割圆
3bwire-circle.vlx 快走丝割圆
使用说明：
1.在AutoCAD中增加一个命令:
在AutoCAD中,如果要加载运行Gearwiredemo.vlx,点菜单下的"工具tools",点"加载应用程序(load application...)",再点此程序Gearwiredemo.vlx,点"加载load"按钮,点"关闭close"按钮. 在AutoCAD的命令(Command:)下,输入Gearwiredemo命令,输入文件名,就可自动生成齿轮AutoCAD图并自动计算出NC加工程序。运行其它vlx程序类似.
2.让增加的命令永存于AutoCAD中:
为使Gearwiredemo命令在AutoCAD中永存,点"加载应用程序(loadapplication...)"后,再点"内容",点"添加",点此程序Gearwiredemo.vlx,再点"添加",点"关闭close"按钮.下次运行AutoCAD就无须再加载Gearwiredemo.vlx, Gearwiredemo命令将永驻于AUTOCAD中.
3.在AutoCAD中增加和应用下拉式菜单:
把AeroCAD.mnu拷贝到AutoCAD的SUPPORT下,在AutoCAD的命令(Command:)下,输入menu,点AeroCAD.mnu,加载菜单,就可点击下拉式菜单命令.例如,点Gearwiredemo命令.
或者把以下菜单复制到你的ACAD.MNU菜单文件的最末尾,再在AutoCAD的命令(Command:)下,输入menu,点acad.mnu,加载菜单,就可使用下拉式菜单命令.
//
// Begin AutoCADPull-down Menus
//
***
***POP12
**CAM
ID_数控线切割 [数控线切割(CAM)]
ID_Mill_l_arc [铣(锣)直线_圆弧(&Mill-l-arc)]^C^C_Mill-l-arc
ID_Mill_l_arc_pl [铣(锣)直线_圆弧_多段线(&Mill-l-arc-pl)]^C^C_Mill-l-arc-pl
ID_Mill_l_arc_pl_sp_el [铣(锣)直线_圆弧_多段线_样条_椭圆(弧)(&Mill-l-arc-pl-sp-el )]^C^C_Mill-l-arc-pl-sp-el
ID_Mill_l_arc_sp_el [铣(锣)直线_圆弧_样条_椭圆(弧)(&Mill-l-arc-sp-el)]^C^C_Mill-l-arc-sp-el
ID_Mill_cut [雕铣(锣)直线_圆_圆弧_样条_多段线_椭圆(弧)(&Mill-cut)]^C^C_Mill-cut
ID_Wire_L_ARC [割直线_圆弧(&WIRE-L-ARC)]^C^C_Wire-L-ARC
ID_Wire_l_arc_pl [割直线_圆弧_多段线(&Wire-l-arc-pl)]^C^C_Wire-l-arc-pl
ID_Wire_l_arc_pl_sp_el [割直线_圆弧_多段线_样条_椭圆(弧)(&Wire-l-arc-pl-sp-el)]^C^C_Wire-l-arc-pl-sp-el
ID_Wire_L_ARC_SP_EL [割直线_圆弧_样条_椭圆(弧)(&Wire-L-ARC-SP-EL)]^C^C_Wire-L-ARC-SP-EL
ID_Wire_circle [割圆(&WIRE-circle)]^C^C_Wire-circle
ID_Check [反向检查G代码加工程序(&Check)]^C^C_Check
ID_Check3B [反向检查3B代码加工程序(&Check3B)]^C^C_Check3B
ID_Erase-by-layer [按图层删除实体(&Erase-by-layer)]^C^C_Erase-by-layer
ID_Erase-by-color [按颜色删除实体(&Erase-by-color)]^C^C_Erase-by-color
ID_Erase-by-entsort [按实体名删除实体(&Erase-by-entsort)]^C^C_Erase-by-entsort
ID_Gearwire [外齿轮及线切割(&Gearwire)]^C^C_Gearwire
ID_Igearwire [内齿轮及线切割(&Igearwire)]^C^C_Igearwire
ID_Gearwiredemo [外齿轮及线切割演示(&Gearwiredemo)]^C^C_Gearwiredemo
ID_Igearwiredemo [内齿轮及线切割演示(&Igearwiredemo)]^C^C_Igearwiredemo
ID_3Bwire_L_ARC [割直线_圆弧(&3Bwire-L-ARC)]^C^C_3Bwire-L-ARC
ID_3Bwire_l_arc_pl [割直线_圆弧_多段线(&3Bwire-l-arc-pl)]^C^C_3bwire-l-arc-pl
ID_3Bwire_L_ARC_SP_EL [割直线_圆弧_样条_椭圆弧(&3Bwire-L-ARC-SP)]^C^C_3Bwire-L-ARC-SP-EL
ID_3Bwire_l_arc_pl_sp_el [割直线_圆弧_多段线_样条_椭圆弧(&3Bwire-l-arc-pl-sp-el)]^C^C_3Bwire-l-arc-pl-sp-el
ID_3Bgearwire [外齿轮及线切割(&3Bgearwire)]^C^C_3Bgearwire
ID_3Bigearwire [内齿轮及线切割(&3Bigearwire)]^C^C_3Bigearwire
ID_3Bgearwiredemo [外齿轮及线切割演示(&3Bgearwiredemo)]^C^C_3Bgearwiredemo
ID_3Bigearwiredemo [内齿轮及线切割演示(&3Bigearwiredemo)]^C^C_3Bigearwiredemo
ID_Cycloidwiredemo [摆线轮及线切割演示(&Cycloidwiredemo)]^C^C_Cycloidwiredemo
ID_Lenth [走丝切割工件的轨迹长度(&Lenth)]^C^C_Lenth
ID_Sp-ellipse-to-arc [样条或椭圆(弧)转化为圆弧(&Sp-ellipse-to-arc)]^C^C_Sp-ellipse-to-arc
ID_Sp-to-line [样条转化为直线(&Sp-to-line)]^C^C_Sp-to-line
ID_Sp-to-arc [样条转化为圆弧(&Sp-to-arc)]^C^C_Sp-to-arc
ID_Line-arc-to-pline [直线和圆弧转化为多段线(&Line-arc-to-pline)]^C^C_Line-arc-to-pline
ID_NC_L_ARC [割直线_圆弧(&NC-L-ARC)]^C^C_NC-L-ARC
ID_NC_L_ARC_PL [割直线_圆弧_多段线(&NC-L-ARC-PL)]^C^C_NC-L-ARC-PL
ID_NCpassword [注册(&NCpassword)]^C^C_NCpassword
***POP13
**GEAR
ID_齿轮 [圆柱齿轮(cylindrical GEAR)]
ID_Gear [单个外变位齿轮(&GEAR)]^C^C_GEAR
ID_igear [单个内变位齿轮(&IGEAR)]^C^C_igear
ID_z1z2 [变位外啮合齿轮副(&z1z2)]^C^C_z1z2
ID_iz1z2 [变位内啮合齿轮副(&iz1z2)]^C^C_iz1z2
ID_oz1z2 [变位外啮合齿轮副(&oz1z2)]^C^C_oz1z2
ID_z1z2z3 [内、外啮合齿轮副(&z1z2z3)]^C^C_z1z2z3
ID_solar [变位行星齿轮系(&solar)]^C^C_solar
ID_Gearwire [外齿轮及线切割(&Gearwire)]^C^C_Gearwire
ID_Igearwire [内齿轮及线切割(&Igearwire)]^C^C_Igearwire
ID_Helixx [斜齿轮螺旋线程序(&Helixx)]^C^C_Helixx
ID_Crec [按中心定位画矩形(&Crec)]^C^C_Crec
ID_Din [变位外花键(&DIN)]^C^C_din
ID_Idin [变位内齿轮(&IDIN)]^C^C_idin
ID_geardemo [外齿轮变位演示(&geardemo)]^C^C_geardemo
ID_igeardemo [内齿轮变位演示(&igeardemo)]^C^C_igeardemo
ID_z1z2demo [外啮合齿轮副演示(&z1z2demo)]^C^C_z1z2demo
ID_iz1z2demo [内啮合齿轮副演示(&iz1z2demo)]^C^C_iz1z2demo
ID_oz1z2demo [外啮合齿轮副演示(&oz1z2demo)]^C^C_oz1z2demo
ID_z1z2z3demo [内、外啮合齿轮副演示(&Z1Z2Z3demo)]^C^C_z1z2z3demo
ID_solardemo [变位行星齿轮系演示(&solardemo)]^C^C_solardemo
ID_Gearwiredemo [外齿轮及线切割演示(&Gearwiredemo)]^C^C_Gearwiredemo
ID_Igearwiredemo [内齿轮及线切割演示(&Igearwiredemo)]^C^C_Igearwiredemo
ID_Password [注册(&cgearpassword)]^C^C_cgearPassword
***POP14
**GEAR
ID_齿轮 [圆锥齿轮和蜗轮与蜗杆(Bevel and worm GEAR)]
ID_BevelGEAR [直齿圆锥齿轮副计算(&Bevelz1z2)]^C^C_Bevelz1z2
ID_HelBevelgear [斜齿圆锥齿轮副计算(&HelBevelz1z2)]^C^C_HelBevelz1z2
ID_ArcBevelgear [弧齿(格利森制)圆锥齿轮副计算(&ArcBevelz1z2)]^C^C_ArcBevelz1z2
ID_Bevelgeardemo [直齿圆锥齿轮副计算演示(&Bevelz1z2demo)]^C^C_Bevelz1z2demo
ID_HelBevelgeardemo [斜齿圆锥齿轮副计算演示(&HelBevelz1z2demo)]^C^C_HelBevelz1z2demo
ID_ArcBevelgeardemo [弧齿(格利森制)圆锥齿轮副计算演示(&ArcBevelz1z2demo)]^C^C_ArcBevelz1z2demo
ID_WormGEAR [普通圆柱蜗杆传动计算(&WormGEAR)]^C^C_WormGEAR
ID_WormGEARdemo [普通圆柱蜗杆传动计算演示(&WormGEARdemo)]^C^C_WormGEARdemo
ID_Password [注册(&Bevelpassword)]^C^C_BevelPassword
***POP15
**NON-CIRCLE-GEAR
ID_非圆齿轮 [非圆齿轮(NonCircleGear)]
ID_eabgear [一阶椭圆变位齿轮(&eabgear)]^C^C_eabgear
ID_e1gear [一阶椭圆变位齿轮(&e1gear)]^C^C_e1gear
ID_e1rack [一阶椭圆变位齿条(&e1rack)]^C^C_e1rack
ID_e2gear [二阶卵形变位齿轮(&e2gear)]^C^C_e2gear
ID_e2rack [二阶卵形变位齿条(&e2rack)]^C^C_e2rack
ID_e3gear [三阶椭圆变位齿轮(&e3gear)]^C^C_e3gear
ID_e3rack [三阶椭圆变位齿条(&e3rack)]^C^C_e3rack
ID_e4gear [四阶椭圆变位齿轮(&e4gear)]^C^C_e4gear
ID_e4rack [四阶椭圆变位齿条(&e4rack)]^C^C_e4rack
ID_e5gear [五阶椭圆变位齿轮(&e5gear)]^C^C_e5gear
ID_e5rack [五阶椭圆变位齿条(&e5rack)]^C^C_e5rack
ID_egear [N阶椭圆变位齿轮(&egear)]^C^C_egear
ID_logear [对数螺旋线变位齿轮(&logear)]^C^C_logear
ID_curvegear [任意曲线变位齿轮(&curvegear)]^C^C_curvegear
ID_NonCircleGearCurve [求节曲线(&NonCircleGearCurve)]^C^C_NonCircleGearCurve
ID_wheel [渐开线花键(&wheel)]^C^C_wheel
ID_Ellipse_gear_demo [1阶椭圆齿轮演示(&EabgearDemo)]^C^C_EabgearDemo
ID_Ellipse_gear_demo [1阶椭圆齿轮演示(&E1gearDemo)]^C^C_E1gearDemo
ID_Ellipse_gear_demo [2阶椭圆齿轮演示(&E2gearDemo)]^C^C_E2gearDemo
ID_Ellipse_gear_demo [3阶椭圆齿轮演示(&E3gearDemo)]^C^C_E3gearDemo
ID_Ellipse_gear_demo [4阶椭圆齿轮演示(&E4gearDemo)]^C^C_E4gearDemo
ID_Ellipse_gear_demo [5阶椭圆齿轮演示(&E5gearDemo)]^C^C_E5gearDemo
ID_y=hsinkx [正弦曲线(&y=hsinkx)]^C^C_y=hsinkx
ID_y=hcoskx [余弦曲线(&y=hcoskx)]^C^C_y=hcoskx
ID_y=heth [对数螺旋线曲线(&y=heth)]^C^C_y=heth
ID_y=kx2 [二次曲线(&y=kx2)]^C^C_y=kx2
ID_y=kx3 [三次曲线(&y=kx3)]^C^C_y=kx3
ID_y=inv [渐开线(&y=inv)]^C^C_y=inv
ID_Spline-from-file [从文件中导入样条曲线(&Spline-from-file)]^C^C_Spline-from-file
ID_Password [注册(&egearPassword)]^C^C_egearPassword
***POP16
**CYCLOID
ID_摆线针轮行星 [摆线针轮行星(CYCLOID)]
ID_Cycloid [摆线针轮行星(&Cycloid)]^C^C_Cycloid
ID_Cycloidemo [摆线针轮行星演示(&Cycloidemo)]^C^C_Cycloidemo
ID_Cycloidwire [摆线轮及线切割(&Cycloidwire)]^C^C_Cycloidwire
ID_Cycloidwiredemo [摆线轮及线切割演示(&Cycloidwiredemo)]^C^C_Cycloidwiredemo
ID_Check [反向检查G代码加工程序(&Check)]^C^C_Check
ID_Check3B [反向检查3B代码加工程序(&Check3B)]^C^C_Check3B
ID_Cycloidpassword [注册(&Cycloidpassword)]^C^C_Cycloidpassword
***POP17
**expression curve
ID_公式曲线 [公式曲线(expression curve)]
ID_y=hsinkx [正弦曲线(&y=hsinkx)]^C^C_y=hsinkx
ID_y=hcoskx [余弦曲线(&y=hcoskx)]^C^C_y=hcoskx
ID_y=heth [对数螺旋线曲线(&y=heth)]^C^C_y=heth
ID_y=kx2 [二次曲线(&y=kx2)]^C^C_y=kx2
ID_y=kx3 [三次曲线(&y=kx3)]^C^C_y=kx3
ID_y=inv [渐开线(&y=inv)]^C^C_y=inv
ID_Spline-from-file [从文件中导入样条曲线(&Spline-from-file)]^C^C_Spline-from-file
程序说明：
线切割试用程序：nc-l-arc.vlx 支持直线（line）和圆弧(arc)
线切割试用程序：nc-l-arc-pl.vlx 支持直线（line）,圆弧(arc)和多段线(pline)
nc-l-arc.vlx----线切割试用程序，例如线切割如下表壳外轮廓的模具内腔，轮廓是直线（line）和圆弧(arc)组成的封闭轮廓
X叉是AUTOCAD的point点,作为线切割起点，穿丝孔。封闭轮廓由直线（line）和圆弧(arc)组成。加载后,执行nc-l-arc命令,只需输入文件名，选择所有的实体图形。选择时无须按顺序，只须框选所有的实体，或在selectobject提示下，输入all。然后自动生成如下线切割加工程序：watch.cam
wwatch
G90G17G40
G92 X0.0000 Y0.0000
G01 X-15.9091 Y12.1202
G03 X-18.1998 Y-8.2927 I15.9091J-12.1202
G02 X-18.6548 Y-9.0000 I-0.4550 J-0.2073
G01 X-24.5000 Y-9.0000
G03 X-25.0000 Y-9.5000 I0.0000 J-0.5000
G01 X-25.0000 Y-10.6108
G03 X-23.1787 Y-12.6028 I2.0000 J0.0000
G02 X-4.5445 Y-22.3300 I-2.4611J-27.4270
G03 X-2.8338 Y-22.0154 I0.7661 J0.6428
G02 X2.8338 Y-22.0154 I2.8338 J-0.9846
G03 X4.5445 Y-22.3300 I0.9446 J0.3282
G02 X23.1787 Y-12.6028 I21.0954J-17.6998
G03 X25.0000 Y-10.6108 I-0.1787 J1.9920
G01 X25.0000 Y-9.5000
G03 X24.5000 Y-9.0000 I-0.5000 J0.0000
G01 X18.6548 Y-9.0000
G02 X18.1998 Y-8.2927 I0.0000 J0.5000
G03 X18.1998 Y8.2927 I-18.1998 J8.2927
G02 X18.6548 Y9.0000 I0.4550 J0.2073
G01 X24.5000 Y9.0000
G03 X25.0000 Y9.5000 I0.0000 J0.5000
G01 X25.0000 Y10.6108
G03 X23.1787 Y12.6028 I-2.0000 J0.0000
G02 X10.7873 Y16.8414 I2.4611 J27.4270
G03 X-10.7873 Y16.8414 I-10.7873J-16.8414
G02 X-23.1787 Y12.6028 I-14.8526J23.1883
G03 X-25.0000 Y10.6108 I0.1787 J-1.9920
G01 X-25.0000 Y9.5000
G03 X-24.5000 Y9.0000 I0.5000 J0.0000
G01 X-18.6548 Y9.0000
G02 X-18.1998 Y8.2927 I0.0000 J-0.5000
G40G01 X0.0000 Y0.0000
M02
线切割轮廓可以是封闭的，也可以是开放的。线切割补偿由机床实现,也可offset路径。以上线切割代码文件存入wire-*.cam中，可用windows写字板打开。起始点point不能少，必须是（直线，圆弧和样条）的端点，用AutoCAD的END（端点）方式捕捉。
如果要清角，可修改路径：
重新运行nc-l-arc命令，自动生成如下线切割加工程序：watch1.cam
wire-watch1
G90G17G40
G92G00 X-37.1726 Y182.0162
G01 X-53.2764 Y193.8765
G03 X-55.3724 Y173.7235 I16.1038 J-11.8603
G02 X-55.8274 Y173.0162 I-0.4550J-0.2073
G01 X-63.1726 Y173.0162
G01 X-63.1726 Y174.0162
G01 X-62.1726 Y174.0162
G01 X-62.1726 Y171.4054
G03 X-60.3513 Y169.4134 I2.0000 J0.0000
G02 X-41.7171 Y159.6862 I-2.4611J-27.4270
G03 X-40.0064 Y160.0008 I0.7661 J0.6428
G02 X-34.3388 Y160.0008 I2.8338 J-0.9846
G03 X-32.6281 Y159.6862 I0.9446 J0.3282
G02 X-13.9939 Y169.4134 I21.0954J-17.6998
G03 X-12.1726 Y171.4054 I-0.1787 J1.9920
G01 X-12.1726 Y174.0162
G01 X-11.1726 Y174.0162
G01 X-11.1726 Y173.0162
G01 X-18.5178 Y173.0162
G02 X-18.9728 Y173.7235 I0.0000 J0.5000
G03 X-18.9728 Y190.3089 I-18.1998J8.2927
G02 X-18.5178 Y191.0162 I0.4550 J0.2073
G01 X-11.1726 Y191.0162
G01 X-11.1726 Y190.0162
G01 X-12.1726 Y190.0162
G01 X-12.1726 Y192.6270
G03 X-13.9939 Y194.6190 I-2.0000 J0.0000
G02 X-26.3853 Y198.8577 I2.4611 J27.4270
G03 X-47.9599 Y198.8577 I-10.7873J-16.8414
G02 X-60.3513 Y194.6190 I-14.8526J23.1883
G03 X-62.1726 Y192.6270 I0.1787 J-1.9920
G01 X-62.1726 Y190.0162
G01 X-63.1726 Y190.0162
G01 X-63.1726 Y191.0162
G01 X-55.8274 Y191.0162
G02 X-55.3724 Y190.3089 I0.0000 J-0.5000
G40G01 X-37.1726 Y182.0162
M02
假定表壳模具型腔的厚度为5mm,拔模斜度为10度，那么上下轮廓的等距偏移量dist=5*tan(10)= 0.8816349, 以L-arc-to-pl.vlx程序（或者pedit的join连接命令）将上面的直线和圆弧转化为多段线pline，
将上图offset 0.8816349,
修改上图，
加载并运行nc-l-arc-pl.vlx，选红色的路径和起始点X，得如下程序：watch2.cam
wire-watch2
G90G17G40
G92G00 X-37.1726Y182.0162
G01 X-53.0730Y192.6317
G03 X-54.5701Y174.0891 I15.9004 J-10.6155
G02 X-55.8274Y172.1346 I-1.2573 J-0.5729
G01 X-64.0542Y172.1346
G01 X-64.0542Y174.8978
G01 X-61.2910Y174.8978
G01 X-61.2910Y171.4054
G03 X-60.2726Y170.2915 I1.1184 J0.0000
G02 X-41.0417Y160.2529 I-2.5399 J-28.3051
G03 X-40.8392Y160.2901 I0.0907 J0.0761
G02 X-33.5060Y160.2901 I3.6666 J-1.2739
G03 X-33.3035Y160.2529 I0.1118 J0.0388
G02 X-14.0726Y170.2915 I21.7708 J-18.2664
G03 X-13.0542Y171.4054 I-0.1000 J1.1139
G01 X-13.0542Y174.8978
G01 X-10.2910Y174.8978
G01 X-10.2910Y172.1346
G01 X-18.5178Y172.1346
G02 X-19.7751Y174.0891 I0.0000 J1.3816
G03 X-19.7751Y189.9433 I-17.3975 J7.9271
G02 X-18.5178Y191.8978 I1.2573 J0.5729
G01 X-10.2910Y191.8978
G01 X-10.2910Y189.1346
G01 X-13.0542Y189.1346
G01 X-13.0542Y192.6270
G03 X-14.0726Y193.7409 I-1.1184 J0.0000
G02 X-26.8608Y198.1152 I2.5399 J28.3051
G03 X-47.4844Y198.1152 I-10.3118 J-16.0990
G02 X-60.2726Y193.7409 I-15.3281 J23.9307
G03 X-61.2910Y192.6270 I0.1000 J-1.1139
G01 X-61.2910Y189.1346
G01 X-64.0542Y189.1346
G01 X-64.0542Y191.8978
G01 X-55.8274Y191.8978
G02 X-54.5701Y189.9433 I0.0000 J-1.3816
G40G01 X-37.1726Y182.0162
M02
同时运行watch1.cam 和 watch2.cam，就可割具有拔模斜度的零件或模具型腔。
一个程序走X，Y，一个程序走U，V。但线切割机必须具有割斜度的功能。
线割锥齿轮也是一样的道理，只不过不是OFFSET齿形，而由模数决定上下齿形。Ms=Mb*(R-b)/R, Ms为小端模数，Mb为大端模数。R为锥距，b为齿宽。
齿轮线切割演示程序：
Gearwiredemo.vlx----齿轮线切割演示程序，全自动地生成齿轮AutoCAD图及线切割G代码加工程序。
Igearwiredemo.vlx----内齿轮线切割演示程序，全自动地生成内齿轮AutoCAD图及线切割G代码加工程序。
3Bgearwiredemo.vlx----齿轮线切割演示程序，全自动地生成齿轮AutoCAD图并同时生成线切割G代码和3B代码加工程序。
3B igearwiredemo.vlx----内齿轮线切割演示程序，全自动地生成内齿轮AutoCAD图及线切割G代码和3B代码加工程序。
Cycloidwiredemo.vlx----摆线针轮线切割演示程序，全自动地生成摆线针轮行星AutoCAD图及线切割G代码和3B代码加工程序。
数控与线切割程序：
line插补:刀具走直线
ARC插补:刀具走圆弧
spline插补:刀具沿样条线前进.
mill-l-arc.vlx----数控铣（锣）程序，例如铣（锣）如下表壳外轮廓，轮廓是直线（line）和圆弧(arc)组成的轮廓：
X叉是一点，是AUTOCAD的point点,作为铣刀起点。封闭轮廓由直线（line）和圆弧(arc)组成。加载后,执行mill-l-arc命令,输入参数(文件名，落刀高度)，选择所有的实体图形。选择时无须按顺序，只须框选所有的实体，或在selectobject提示下，输入all。然后自动生成如下数控加工程序，程序名:文件名.cam：
Owatch
G90G17G40
G92X0Y0Z0
S500M03
M08
G00 X-25.0000 Y25.6270
G04P1000
G00G42 X-25.0000 Y25.6270 Z-40.0000D1F50
G04P1000
G01 X-25.0000 Y9.5000
G03 X-24.5000 Y9.0000 I0.5000 J0.0000
G01 X-18.6548 Y9.0000
G02 X-18.1998 Y8.2927 I0.0000 J-0.5000
G03 X-18.1998 Y-8.2927 I18.1998 J-8.2927
G02 X-18.6548 Y-9.0000 I-0.4550 J-0.2073
G01 X-24.5000 Y-9.0000
G03 X-25.0000 Y-9.5000 I0.0000 J-0.5000
G01 X-25.0000 Y-10.6108
G03 X-23.1787 Y-12.6028 I2.0000 J0.0000
G02 X-4.5445 Y-22.3300 I-2.4611J-27.4270
G03 X-2.8338 Y-22.0154 I0.7661 J0.6428
G02 X2.8338 Y-22.0154 I2.8338 J-0.9846
G03 X4.5445 Y-22.3300 I0.9446 J0.3282
G02 X23.1787 Y-12.6028 I21.0954J-17.6998
G03 X25.0000 Y-10.6108 I-0.1787 J1.9920
G01 X25.0000 Y-9.5000
G03 X24.5000 Y-9.0000 I-0.5000 J0.0000
G01 X18.6548 Y-9.0000
G02 X18.1998 Y-8.2927 I0.0000 J0.5000
G03 X18.1998 Y8.2927 I-18.1998 J8.2927
G02 X18.6548 Y9.0000 I0.4550 J0.2073
G01 X24.5000 Y9.0000
G03 X25.0000 Y9.5000 I0.0000 J0.5000
G01 X25.0000 Y10.6108
G03 X23.1787 Y12.6028 I-2.0000 J0.0000
G02 X10.7873 Y16.8414 I2.4611 J27.4270
G03 X-10.7873 Y16.8414 I-10.7873J-16.8414
G02 X-23.1787 Y12.6028 I-14.8526J23.1883
G03 X-25.0000 Y10.6108 I0.1787 J-1.9920
G00 Z0
G40G00 X0Y0
M30
mill-l-arc-spline.vlx----数控铣（锣）程序，例如铣如下椭圆齿轮外轮廓，轮廓是直线（line）、圆弧(arc)和样条（spline）组成的轮廓。先用sp-to-arc.vlx把齿顶转化为圆弧（转化为3段圆弧就可），
X叉是AUTOCAD的point点,作为铣刀起点。直线（line）、圆弧(arc)和样条（spline）插补。加载后,执行mill-l-arc-spline命令,输入参数(文件名，落刀高度，样条精度)，选择所有的实体图形。选择时无须按顺序，只须框选所有的齿轮轮廓，包扩起始点。样条精度dt是spline转化为圆弧插补的步长。全长为1.0，dt为0.01时，样条转化为100段圆弧插补。dt越小，加工精度越高，程序越长 。以下为dt=0.1（齿廓样条转化为10段圆弧插补）时的齿轮加工程序，程序名:文件名.cam：
Oe1
G90G17G40
G92X0Y0Z0
S500M03
M08
G00 X-15.5759 Y-1.5463
G04P1000
G00G42 X-15.5759 Y-1.5463 Z-40.0000D1F50
G04P1000
G03 X-15.0759 Y-5.0392 I23.5352 J1.5869
G03 X-14.9284 Y-5.6670 I23.0066 J5.0735
G03 X-14.7640 Y-6.2900 I23.1037 J5.7628
G03 X-13.1760 Y-6.7337 I4.0450 J11.4139
G03 X-11.5393 Y-6.9269 I1.9033 J9.0964
G03 X-9.9096 Y-6.7293 I0.2328 J4.8996
G02 X-8.2983 Y-6.5016 I1.1920 J-2.6199
G02 X-7.0995 Y-7.5265 I-0.2798 J-1.5408
G02 X-7.1556 Y-9.1006 I-1.3698 J-0.7393
G02 X-8.4165 Y-10.2120 I-2.6321 J1.7154
G03 X-9.4247 Y-11.2303 I2.8328 J-3.8130
G03 X-10.3222 Y-12.6131 I8.4439 J-6.4629
G03 X-11.0304 Y-14.1026 I12.8144J-7.0059
G03 X-10.6371 Y-14.6479 I22.6353J15.9113
G03 X-10.2314 Y-15.1827 I22.5290J16.6688
G03 X-9.8137 Y-15.7070 I22.3999 J17.4187
G03 X-8.2072 Y-15.4436 I-1.3324 J13.1568
G03 X-6.6519 Y-14.9649 I-2.3801 J10.4975
G03 X-5.2110 Y-14.2128 I-2.6048 J6.7469
G02 X-3.8252 Y-13.3849 I2.4961 J-2.6044
G02 X-2.3349 Y-13.8145 I0.3919 J-1.4403
G02 X-1.7628 Y-15.2582 I-0.9167 J-1.1984
G02 X-2.4517 Y-16.6954 I-3.0696 J0.5876
G03 X-3.0959 Y-18.1869 I5.7932 J-3.3873
G03 X-3.4760 Y-19.7697 I12.2300 J-3.7740
G03 X-3.6798 Y-21.3852 I16.6809 J-2.9246
G03 X-3.1038 Y-21.7830 I19.4555 J27.5542
G03 X-2.5205 Y-22.1684 I19.1762 J28.3913
G03 X-1.9302 Y-22.5413 I18.7859 J29.0755
G03 X-0.5253 Y-21.7332 I-6.9297 J13.6733
G03 X0.7773 Y-20.7693 I-6.9902 J10.8081
G03 X1.9247 Y-19.6265 I-6.0168 J7.1883
G02 X3.0003 Y-18.4273 I3.8480 J-2.3695
G02 X4.5398 Y-18.3757 I0.8110 J-1.2041
G02 X5.5014 Y-19.5812 I-0.4928 J-1.3793
G02 X5.2715 Y-21.1730 I-3.8270 J-0.2597
G03 X5.1165 Y-22.7849 I8.9743 J-1.6764
G03 X5.1851 Y-24.4041 I14.6882 J-0.1887
G03 X5.4113 Y-26.0092 I18.5449 J1.7952
G03 X6.0914 Y-26.2380 I12.8887 J37.1883
G03 X6.7750 Y-26.4543 I12.2885 J37.6618
G03 X7.4620 Y-26.6580 I11.6806 J38.1253
G03 X8.5722 Y-25.4811 I-12.1475 J12.5709
G03 X9.5585 Y-24.1989 I-11.1643 J9.6078
G03 X10.3738 Y-22.8026 I-8.9099 J6.1389
G02 X11.1113 Y-21.3722 I4.8495 J-1.5951
G02 X12.5816 Y-20.9284 I1.0846 J-0.9359
G02 X13.8061 Y-21.8566 I-0.1221 J-1.4328
G02 X13.9919 Y-23.4542 I-4.4806 J-1.3308
G03 X14.2581 Y-25.0491 I10.6848 J0.9637
G03 X14.7193 Y-26.5997 I15.1995 J3.6772
G03 X15.3230 Y-28.1008 I18.0374 J6.3823
G03 X16.0453 Y-28.1565 I3.6084 J42.0751
G03 X16.7684 Y-28.1998 I2.8896 J42.1820
G03 X17.4920 Y-28.2307 I2.1689 J42.2702
G03 X18.2712 Y-26.8134 I-16.1397 J9.7963
G03 X18.9141 Y-25.3295 I-14.0161 J6.9538
G03 X19.3718 Y-23.7793 I-10.3774 J3.9068
G02 X19.7492 Y-22.2156 I4.9722 J-0.3727
G02 X21.0733 Y-21.4385 I1.2737 J-0.6538
G02 X22.4792 Y-22.0548 I0.2186 J-1.4131
G02 X23.0399 Y-23.5628 I-4.4796 J-2.5238
G03 X23.6800 Y-25.0471 I10.5023 J3.6489
G03 X24.4976 Y-26.4424 I13.6210 J7.0439
G03 X25.4455 Y-27.7528 I15.2972 J10.0683
G03 X26.1576 Y-27.6354 I-6.3976 J41.0251
G03 X26.8678 Y-27.5056 I-7.0770 J40.7202
G03 X27.5758 Y-27.3633 I-7.7505 J40.3992
G03 X27.9960 Y-25.7996 I-18.1707 J5.7205
G03 X28.2666 Y-24.2034 I-14.9386 J3.3540
G03 X28.3295 Y-22.5868 I-9.9888 J1.1982
G02 X28.3134 Y-20.9785 I4.1842 J0.8460
G02 X29.4183 Y-19.9075 I1.4070 J-0.3461
G02 X30.9343 Y-20.1641 I0.5549 J-1.3285
G02 X31.8435 Y-21.4929 I-3.5200 J-3.3835
G03 X32.8280 Y-22.7769 I8.5782 J5.5585
G03 X33.9768 Y-23.9173 I10.3387 J9.2652
G03 X35.2409 Y-24.9290 I10.9016 J12.3266
G03 X35.8879 Y-24.6397 I-14.9539J34.3154
G03 X36.5299 Y-24.3378 I-15.4519J33.7009
G03 X37.1666 Y-24.0234 I-15.9409J33.0815
G03 X37.1859 Y-22.4000 I-17.8793 J1.0244
G03 X37.0385 Y-20.7836 I-13.8218J-0.4453
G03 X36.6486 Y-19.2100 I-7.9213 J-1.1276
G02 X36.1923 Y-17.6678 I2.9751 J1.7189
G02 X36.9812 Y-16.3377 I1.4852 J0.0181
G02 X38.5157 Y-16.1635 I0.9082 J-1.1545
G02 X39.7511 Y-17.1989 I-1.9533 J-3.5853
G03 X41.0525 Y-18.1662 I5.6094 J6.1878
G03 X42.4940 Y-18.9115 I6.1250 J10.0802
G03 X44.0176 Y-19.4712 I5.6549 J13.0384
G03 X44.5321 Y-19.0187 I-20.4787J23.8021
G03 X45.0372 Y-18.5544 I-20.7169J23.0423
G03 X45.5325 Y-18.0782 I-20.9381J22.2759
G03 X45.0859 Y-16.5017 I-15.3991 J-3.5107
G03 X44.4538 Y-14.9906 I-11.0714J-3.7438
G03 X43.6476 Y-13.7471 I-5.5319 J-2.7033
G02 X42.6357 Y-12.3967 I1.9110 J2.4865
G02 X42.9208 Y-10.8592 I1.4379 J0.5285
G02 X44.3063 Y-10.1341 I1.3007 J-0.7992
G02 X45.8263 Y-10.6957 I-0.2928 J-3.1304
G03 X47.3835 Y-11.1912 I2.6039 J5.4880
G03 X49.0128 Y-11.3547 I1.7987 J9.7254
G03 X50.6491 Y-11.2777 I0.2326 J12.4845
G03 X50.9490 Y-10.6948 I-22.5643J11.9781
G03 X51.2342 Y-10.1035 I-22.7351J11.3309
G03 X51.5044 Y-9.5042 I-22.8705 J10.6697
G03 X50.5260 Y-8.1678 I-11.3690 J-7.2968
G03 X49.3671 Y-6.9858 I-7.5368 J-6.2301
G03 X48.1376 Y-6.2155 I-2.6287 J-2.8298
G02 X46.6936 Y-5.4075 I0.7357 J3.0089
G02 X46.2981 Y-3.8747 I1.1206 J1.1066
G02 X47.2458 Y-2.6036 I1.5782 J-0.1879
G02 X48.9009 Y-2.4661 I1.0549 J-2.6685
G03 X50.4843 Y-2.3236 I0.4345 J4.0412
G03 X52.0407 Y-1.7608 I-2.2912 J8.7682
G03 X53.4907 Y-0.9607 I-5.1384 J11.0256
G03 X53.5083 Y-0.3203 I-23.1676 J0.9603
G03 X53.5083 Y0.3203 I-23.1921 J0.3203
G03 X53.4907 Y0.9607 I-23.2192 J-0.3209
G03 X52.0407 Y1.7608 I-6.5883 J-10.2255
G03 X50.4843 Y2.3236 I-3.8476 J-8.2053
G03 X48.9009 Y2.4661 I-1.1489 J-3.8987
G02 X47.2458 Y2.6036 I-0.6002 J2.8060
G02 X46.2981 Y3.8747 I0.6305 J1.4590
G02 X46.6936 Y5.4075 I1.5161 J0.4262
G02 X48.1376 Y6.2155 I2.1797 J-2.2009
G03 X49.3671 Y6.9858 I-1.3991 J3.6001
G03 X50.5260 Y8.1678 I-6.3779 J7.4121
G03 X51.5044 Y9.5042 I-10.3906 J8.6332
G03 X51.2342 Y10.1035 I-23.1406J-10.0704
G03 X50.9490 Y10.6948 I-23.0203J-10.7396
G03 X50.6491 Y11.2777 I-22.8642J-11.3952
G03 X49.0128 Y11.3547 I-1.4037 J-12.4076
G03 X47.3835 Y11.1912 I0.1694 J-9.8889
G03 X45.8263 Y10.6957 I1.0467 J-5.9835
G02 X44.3063 Y10.1341 I-1.8128 J2.5688
G02 X42.9208 Y10.8592 I-0.0848 J1.5242
G02 X42.6357 Y12.3967 I1.1527 J1.0090
G02 X43.6476 Y13.7471 I2.9230 J-1.1361
G03 X44.4538 Y14.9906 I-4.7257 J3.9468
G03 X45.0859 Y16.5017 I-10.4393 J5.2549
G03 X45.5325 Y18.0782 I-14.9525 J5.0873
G03 X45.0372 Y18.5544 I-21.4334J-21.7997
G03 X44.5321 Y19.0187 I-21.2220J-22.5779
G03 X44.0176 Y19.4712 I-20.9932J-23.3496
G03 X42.4940 Y18.9115 I4.1313 J-13.5982
G03 X41.0525 Y18.1662 I4.6835 J-10.8254
G03 X39.7511 Y17.1989 I4.3081 J-7.1551
G02 X38.5157 Y16.1635 I-3.1887 J2.5500
G02 X36.9812 Y16.3377 I-0.6263 J1.3287
G02 X36.1923 Y17.6678 I0.6964 J1.3120
G02 X36.6486 Y19.2100 I3.4314 J-0.1767
G03 X37.0385 Y20.7836 I-7.5314 J2.7012
G03 X37.1859 Y22.4000 I-13.6744 J2.0617
G03 X37.1666 Y24.0234 I-17.8986 J0.5990
G03 X36.5299 Y24.3378 I-16.5776J-32.7671
G03 X35.8879 Y24.6397 I-16.0939J-33.3991
G03 X35.2409 Y24.9290 I-15.6010 J-34.0261
G03 X33.9768 Y23.9173 I9.6375 J-13.3382
G03 X32.8280 Y22.7769 I9.1900 J-10.4057
G03 X31.8435 Y21.4929 I7.5936 J-6.8425
G02 X30.9343 Y20.1641 I-4.4291 J2.0547
G02 X29.4183 Y19.9075 I-0.9612 J1.0719
G02 X28.3134 Y20.9785 I0.3021 J1.4171
G02 X28.3295 Y22.5868 I4.2002 J0.7623
G03 X28.2666 Y24.2034 I-10.0517 J0.4184
G03 X27.9960 Y25.7996 I-15.2092 J-1.7579
G03 X27.5758 Y27.3633 I-18.5909 J-4.1567
G03 X26.8678 Y27.5056 I-8.4586 J-40.2569
G03 X26.1576 Y27.6354 I-7.7872 J-40.5903
G03 X25.4455 Y27.7528 I-7.1097 J-40.9078
G03 X24.4976 Y26.4424 I14.3492 J-11.3787
G03 X23.6800 Y25.0471 I12.8035 J-8.4392
G03 X23.0399 Y23.5628 I9.8622 J-5.1332
G02 X22.4792 Y22.0548 I-5.0403 J1.0158
G02 X21.0733 Y21.4385 I-1.1873 J0.7968
G02 X19.7492 Y22.2156 I-0.0503 J1.4308
G02 X19.3718 Y23.7793 I4.5948 J1.9364
G03 X18.9141 Y25.3295 I-10.8351 J-2.3565
G03 X18.2712 Y26.8134 I-14.6590 J-5.4699
G03 X17.4920 Y28.2307 I-16.9189 J-8.3790
G03 X16.7684 Y28.1998 I1.4453 J-42.3011
G03 X16.0453 Y28.1565 I2.1666 J-42.2253
G03 X15.3230 Y28.1008 I2.8861 J-42.1309
G03 X14.7193 Y26.5997 I17.4337 J-7.8834
G03 X14.2581 Y25.0491 I14.7383 J-5.2278
G03 X13.9919 Y23.4542 I10.4186 J-2.5586
G02 X13.8061 Y21.8566 I-4.6664 J-0.2669
G02 X12.5816 Y20.9284 I-1.3465 J0.5046
G02 X11.1113 Y21.3722 I-0.3857 J1.3797
G02 X10.3738 Y22.8026 I4.1120 J3.0255
G03 X9.5585 Y24.1989 I-9.7253 J-4.7425
G03 X8.5722 Y25.4811 I-12.1506 J-8.3255
G03 X7.4620 Y26.6580 I-13.2577 J-11.3940
G03 X6.7750 Y26.4543 I10.9936 J-38.3290
G03 X6.0914 Y26.2380 I11.6048 J-37.8780
G03 X5.4113 Y26.0092 I12.2086 J-37.4171
G03 X5.1851 Y24.4041 I18.3187 J-3.4003
G03 X5.1165 Y22.7849 I14.6196 J-1.4305
G03 X5.2715 Y21.1730 I9.1293 J0.0645
G02 X5.5014 Y19.5812 I-3.5971 J-1.3321
G02 X4.5398 Y18.3757 I-1.4543 J0.1738
G02 X3.0003 Y18.4273 I-0.7285 J1.2557
G02 X1.9247 Y19.6265 I2.7724 J3.5687
G03 X0.7773 Y20.7693 I-7.1643 J-6.0455
G03 X-0.5253 Y21.7332 I-8.2928 J-9.8442
G03 X-1.9302 Y22.5413 I-8.3346 J-12.8652
G03 X-2.5205 Y22.1684 I18.1957 J-29.4485
G03 X-3.1038 Y21.7830 I18.5929 J-28.7767
G03 X-3.6798 Y21.3852 I18.8795 J-27.9520
G03 X-3.4760 Y19.7697 I16.8847 J1.3091
G03 X-3.0959 Y18.1869 I12.6101 J2.1912
G03 X-2.4517 Y16.6954 I6.4374 J1.8958
G02 X-1.7628 Y15.2582 I-2.3807 J-2.0248
G02 X-2.3349 Y13.8145 I-1.4887 J-0.2453
G02 X-3.8252 Y13.3849 I-1.0985 J1.0106
G02 X-5.2110 Y14.2128 I1.1104 J3.4322
G03 X-6.6519 Y14.9649 I-4.0457 J-5.9948
G03 X-8.2072 Y15.4436 I-3.9355 J-10.0188
G03 X-9.8137 Y15.7070 I-2.9389 J-12.8934
G03 X-10.2314 Y15.1827 I21.9821J-17.9430
G03 X-10.6371 Y14.6479 I22.1233J-17.2037
G03 X-11.0304 Y14.1026 I22.2421J-16.4565
G03 X-10.3222 Y12.6131 I13.5226 J5.5163
G03 X-9.4247 Y11.2303 I9.3414 J5.0800
G03 X-8.4165 Y10.2120 I3.8411 J2.7947
G02 X-7.1556 Y9.1006 I-1.3711 J-2.8267
G02 X-7.0995 Y7.5265 I-1.3138 J-0.8348
G02 X-8.2983 Y6.5016 I-1.4786 J0.5158
G02 X-9.9096 Y6.7293 I-0.4193 J2.8476
G03 X-11.5393 Y6.9269 I-1.3970 J-4.7020
G03 X-13.1760 Y6.7337 I0.2667 J-9.2896
G03 X-14.7641 Y6.2900 I2.4570 J-11.8576
G03 X-14.9284 Y5.6668 I22.8305 J-6.3532
G03 X-15.0758 Y5.0388 I22.9827 J-5.7268
G03 X-15.2062 Y4.4065 I23.1270 J-5.0981
G03 X-13.9692 Y3.3001 I9.0353 J8.8573
G03 X-12.5789 Y2.3959 I5.7057 J7.2515
G03 X-11.1244 Y1.9193 I1.8388 J3.1544
G02 X-9.5583 Y1.4324 I-0.0657 J-2.9734
G02 X-8.8746 Y-0.0002 I-0.8957 J-1.3069
G02 X-9.5584 Y-1.4328 I-1.5794 J-0.1256
G02 X-11.1246 Y-1.9196 I-1.6317 J2.4868
G03 X-12.5790 Y-2.3963 I0.3848 J-3.6317
G03 X-13.9693 Y-3.3006 I4.3159 J-8.1560
G03 X-15.2063 Y-4.4070 I7.7988 J-9.9637
G00 Z0
G40G00 X0Y0
M30
如果要提高加工精度，把dt设置小一些。例如dt=0.01, 齿廓样条转化为100段圆弧插补。
如果要给0.05的右补偿，可用sp-or-ellipse-to-arc.vlx把先把齿廓样条转化为圆弧, 根据需要取精度，例如，取0.02,再用l-arc-to-pl.vlx把齿廓转化为多段线pline.
未连接的地方需用fillet倒圆角，圆角半径为0，使它们连成一体的多段线pline。再offset,偏距0.05,得到一补偿路径（红色的路径）。
端点未连接，须延长使之相连，起始点需移至补偿的新路径端点。
再加载mill-l-arc-pl.vlx，键入mill-l-arc-pl命令，选取端点和红色的新路径，就得到右补偿为0.05的新加工程序：mill-ebu05.cam。也可用explode命令将多段线pline转化为直线line和圆弧arc，再转数控线切割加工程序。

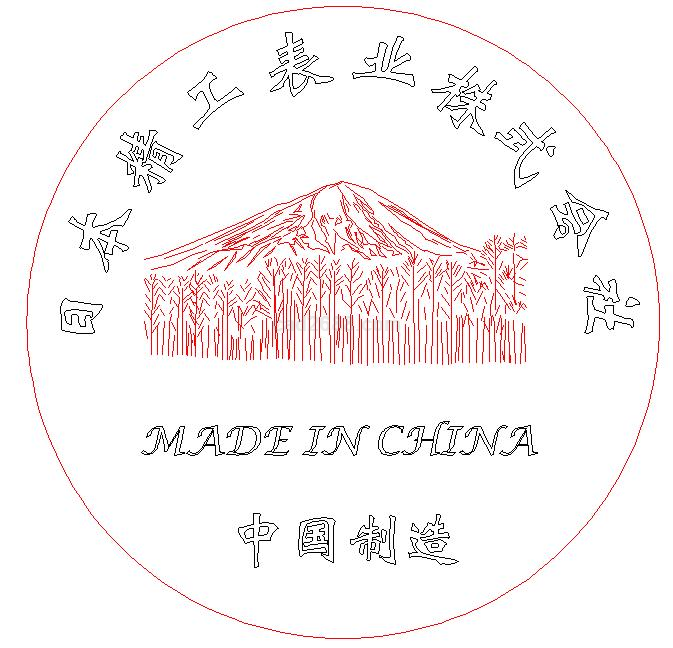

Mill-cut.vlx----数控铣（锣）程序，例如，在铜公（电火花的铜电极）上铣如下表壳底部图案：
图案可由点(point) 、直线（line）、圆(circle) 、圆弧(arc) 、样条（spline）和多段线（pline）、椭圆或椭圆弧（ellipse）组成。加载后,执行mill-sp-pl命令,输入参数(文件名，落刀高度，提刀高度,样条精度)，选择所有的实体图形。选择时无须按顺序，只须框选所有的实体，或在select object提示下，输入all。可得到如下加工程序（落刀高度-40.0, 提刀高度-38.0,dt=0.1）：
%
Ofujimountain
G90G17G40
S1000M03
M08
G00 X1533.2077 Y-2149.5091
G01 Z-40.0000
G03 X1601.0570 Y-2153.3745 I41.8446J137.0846
G00 Z-38.0000
G00 X1526.4331 Y-2086.9563
G01 Z-40.0000
G03 X1533.2077 Y-2149.5091 I59.1048J-25.2421
G00 Z-38.0000
G00 X1539.0892 Y-2021.2911
G01 Z-40.0000
G03 X1526.4331 Y-2086.9563 I2890.9921J-591.2528
G00 Z-38.0000
G00 X1539.0892 Y-2021.2911
G01 Z-40.0000
G03 X1552.3521 Y-1955.7443 I-41041.3439J8338.5143
G00 Z-38.0000
G00 X1565.7886 Y-1890.2330
G01 Z-40.0000
G03 X1552.3521 Y-1955.7443 I7719.2804J-1617.3702
G00 Z-38.0000
G00 X1580.2149 Y-1824.9337
G01 Z-40.0000
G03 X1565.7886 Y-1890.2330 I3001.5737J-697.3665
G00 Z-38.0000
G00 X1595.8067 Y-1759.9017
G01 Z-40.0000
G03 X1580.2149 Y-1824.9337 I7176.1291J-1754.9099
G00 Z-38.0000
G00 X1618.4258 Y-1697.3403
G01 Z-40.0000
G03 X1595.8067 Y-1759.9017 I170.3036J-96.9428
G00 Z-38.0000
G00 X1673.8039 Y-1665.0820
G01 Z-40.0000
G03 X1618.4258 Y-1697.3403 I1.3991J-66.0651
G00 Z-38.0000
G00 X1732.9654 Y-1693.0111
G01 Z-40.0000
G03 X1673.8039 Y-1665.0820 I-67.5637J-66.4937
G00 Z-38.0000
G00 X1760.6853 Y-1646.2107
G01 Z-40.0000
。。。。。。
G00 Z-38.0000
G00 X-2956.4467 Y-2058.8422
G01 Z-40.0000
G03 X-2973.0220 Y-1965.5696 I-1134.1083J-153.4319
G00 Z-38.0000
G00 X-2951.2123 Y-2141.6544
G01 Z-40.0000
G03 X-2956.4467 Y-2058.8422 I-581.9658J4.7870
G00 Z-38.0000
G00 X-3041.0683 Y-1979.5169
G01 Z-40.0000
G01 X-3011.4071 Y-1830.4550
G00 Z-38.0000
G00 X-3339.4253 Y-2159.9602
G01 Z-40.0000
G03 X-3291.4439 Y-2186.1114 I99.3844J125.2544
G00 Z-38.0000
G00 X-3291.4439 Y-2186.1114
G01 Z-40.0000
G03 X-3218.1633 Y-2192.2134 I48.8838J143.9852
G00 Z-38.0000
G00 X-3218.1633 Y-2192.2134
G01 Z-40.0000
G03 X-3158.8409 Y-2173.9075 I-36.1607J222.4572
G00 Z-38.0000
G00 X-3158.8409 Y-2173.9075
G01 Z-40.0000
G03 X-3130.9244 Y-2153.8583 I-39.5066J84.4687
G00 Z-38.0000
G00 X-3130.9244 Y-2153.8583
G01 Z-40.0000
G03 X-3100.3908 Y-2119.8617 I-535.8342J511.9631
G00 Z-38.0000
G00 X-3100.3908 Y-2119.8617
G01 Z-40.0000
G03 X-3063.7504 Y-2053.6120 I-148.7259J125.5121
G00 Z-38.0000
G00 X-3063.7504 Y-2053.6120
G01 Z-40.0000
G03 X-3041.0683 Y-1979.5169 I-2983.2353J953.7522
G00 Z-38.0000
G00 X-3294.9335 Y-2113.7597
G01 Z-40.0000
G01 X-3339.4253 Y-2159.0885
G00 Z-38.0000
G00 X-3041.9407 Y-1752.8731
G01 Z-40.0000
G01 X-3103.8803 Y-2057.9705
G00 Z-38.0000
G00 X-3145.7550 Y-2139.0392
G01 Z-40.0000
G03 X-3103.8803 Y-2057.9705 I-121.9095J114.3195
G00 Z-38.0000
G00 X-3204.2051 Y-2165.1905
G01 Z-40.0000
G03 X-3145.7550 Y-2139.0392 I-1.9782J82.8172
G00 Z-38.0000
G00 X-3258.2931 Y-2152.1148
G01 Z-40.0000
G03 X-3204.2051 Y-2165.1905 I51.5141J94.6841
G00 Z-38.0000
G00 X-3294.9335 Y-2113.7597
G01 Z-40.0000
G03 X-3258.2931 Y-2152.1148 I78.1918J38.0174
G00 Z-38.0000
G00 Z0
G40G00 X0 Y0
M30
加工程序太长，中间部分被删除。完整程序在wfujimountain.cam文件中。
如果嫌加工程序太长，可把加工程序分成几段。例如，把加工程序分成3段：“日本精工表业株式会社”为一段，“富士山和森林”为一段，“MADE IN CHINA和中国制造”为一段。在运行Mill-cut命令后，选择各自的实体图形。例如，“富士山和森林”的加工程序，只须选“富士山和森林”实体图形，然后自动生成“富士山和森林”的加工程序，程序名:文件名.cam。
Check.vlx----反向检查程序。加载后执行Check命令，可由数控与线切割程序反向画出AUTOCAD图及刀具轨迹。例如，上面很长的表客底部的程序名为：wfujimountain.cam，执行Check命令后，点wfujimountain.cam后生成如下图形：
红色线为刀具轨迹。
Erase-by-color.VLX----按颜色删除程序。加载后执行erase-by- color命令。输入颜色名，即可自动删除某种颜色的实体图形。例如删除上图中红色的刀具轨迹，只需输入颜色号1。 在AUTOCAD中，整数1是红色的代号。删除上图中红色的刀具轨迹或关闭G00图层后，得到如下图形：
可以看出，由数控与线切割程序反向画出的AUTOCAD图和原图完全一样。这证明加工程序正确无误。
Erase-by-layer.VLX----按图层删除程序。加载后执行erase-by-layer命令。输入图层名，即可自动删除图层上的所以实体图形。
erase-by-entsort.VLX----按实体名删除程序。加载后执行erase-by- entsort命令。输入实体名，即可自动删除某种实体图形。例如删除齿轮图中所有的SPLINE样条线。
线切割程序:
试用程序：nc-l-arc.vlx
nc-l-arc.vlx----线切割试用程序，例如线切割如下表壳外轮廓的模具内腔，轮廓是直线（line）和圆弧(arc)组成的封闭轮廓。
X叉是AUTOCAD的point点,作为线切割起点，穿丝孔。封闭轮廓由直线（line）和圆弧(arc)组成。加载后,执行nc-l-arc命令,只需输入文件名，选择所有的实体图形。选择时无须按顺序，只须框选所有的实体，或在selectobject提示下，输入all。然后自动生成如下线切割加工程序：
wwatch
G90G17G40
G92 X0.0000 Y0.0000
G01 X-15.9091 Y12.1202
G03 X-18.1998 Y-8.2927 I15.9091J-12.1202
G02 X-18.6548 Y-9.0000 I-0.4550 J-0.2073
G01 X-24.5000 Y-9.0000
G03 X-25.0000 Y-9.5000 I0.0000 J-0.5000
G01 X-25.0000 Y-10.6108
G03 X-23.1787 Y-12.6028 I2.0000 J0.0000
G02 X-4.5445 Y-22.3300 I-2.4611J-27.4270
G03 X-2.8338 Y-22.0154 I0.7661 J0.6428
G02 X2.8338 Y-22.0154 I2.8338 J-0.9846
G03 X4.5445 Y-22.3300 I0.9446 J0.3282
G02 X23.1787 Y-12.6028 I21.0954J-17.6998
G03 X25.0000 Y-10.6108 I-0.1787 J1.9920
G01 X25.0000 Y-9.5000
G03 X24.5000 Y-9.0000 I-0.5000 J0.0000
G01 X18.6548 Y-9.0000
G02 X18.1998 Y-8.2927 I0.0000 J0.5000
G03 X18.1998 Y8.2927 I-18.1998 J8.2927
G02 X18.6548 Y9.0000 I0.4550 J0.2073
G01 X24.5000 Y9.0000
G03 X25.0000 Y9.5000 I0.0000 J0.5000
G01 X25.0000 Y10.6108
G03 X23.1787 Y12.6028 I-2.0000 J0.0000
G02 X10.7873 Y16.8414 I2.4611 J27.4270
G03 X-10.7873 Y16.8414 I-10.7873J-16.8414
G02 X-23.1787 Y12.6028 I-14.8526J23.1883
G03 X-25.0000 Y10.6108 I0.1787 J-1.9920
G01 X-25.0000 Y9.5000
G03 X-24.5000 Y9.0000 I0.5000 J0.0000
G01 X-18.6548 Y9.0000
G02 X-18.1998 Y8.2927 I0.0000 J-0.5000
G40G01 X0.0000 Y0.0000
M02
wire-l-arc-sp.vlx----线切割程序。例如，线切割如下齿轮部分齿的外轮廓，轮廓是由直线（line）、圆弧(arc) 和样条（spline）组成的不封闭轮廓。
X叉是AUTOCAD的point点,作为线切割起点，穿丝孔。不封闭轮廓由直线（line）、圆弧(arc) 和样条（spline）组成。加载后,执行wire-l-arc-sp命令后,只需输入文件名和样条精度dt=0.1，然后选择所有的实体图形。选择时无须按顺序，只须框选所有的实体，或在selectobject提示下，输入all。然后自动生成如下线切割加工程序：
wire-geartooth
G90G17G40
G92G00 X-26.6140 Y0.0000
G01 X-19.6501 Y0.0000
G03 X-19.2761 Y-3.8153 I19.6501 J0.0000
G02 X-19.3783 Y-4.6066 I-1.2583 J-0.2398
G02 X-19.9073 Y-5.2090 I-1.3682 J0.6680
G02 X-20.6393 Y-5.5534 I-1.7012 J2.6657
G03 X-21.3494 Y-5.9439 I2.0675 J-4.6009
G03 X-22.0043 Y-6.4221 I4.2584 J-6.5195
G03 X-22.6121 Y-6.9590 I6.1485 J-7.5738
G03 X-23.1770 Y-7.5410 I7.8810 J-8.2137
G03 X-23.7016 Y-8.1597 I9.4986 J-8.5859
G03 X-24.1879 Y-8.8089 I11.0223 J-8.7633
G03 X-24.6376 Y-9.4841 I12.4646 J-8.7893
G03 X-24.0573 Y-10.8724 I24.6376 J9.4841
G03 X-23.2609 Y-11.0266 I3.2971 J14.8912
G03 X-22.4572 Y-11.1365 I2.3097 J13.8907
G03 X-21.6484 Y-11.1978 I1.3707 J12.7304
G03 X-20.8373 Y-11.2046 I0.5015 J11.3721
G03 X-20.0281 Y-11.1492 I-0.2619 J9.7518
G03 X-19.2278 Y-11.0190 I-0.8481 J7.7407
G03 X-18.4510 Y-10.7879 I-1.0453 J4.9346
G02 X-17.6917 Y-10.5089 I1.4615 J-2.8043
G02 X-16.8914 Y-10.5556 I0.3147 J-1.4897
G02 X-16.2564 Y-11.0387 I-0.4197J-1.2103
G03 X-16.0578 Y-11.3258 I16.2564J11.0387
G02 X-15.8292 Y-12.0902 I-1.0520J-0.7308
G02 X-16.0675 Y-12.8557 I-1.5216 J0.0538
G02 X-16.5961 Y-13.4680 I-2.6384 J1.7433
G03 X-17.0860 Y-14.1136 I3.7601 J-3.3621
G03 X-17.4898 Y-14.8168 I6.5419 J-4.2238
G03 X-17.8267 Y-15.5545 I8.6975 J-4.4182
G03 X-18.1061 Y-16.3160 I10.5405J-4.2982
G03 X-18.3337 Y-17.0946 I12.1696J-3.9802
G03 X-18.5139 Y-17.8855 I13.6337J-3.5225
G03 X-18.6501 Y-18.6852 I14.9619J-2.9596
G03 X-17.5552 Y-19.7174 I18.6501J18.6852
G03 X-16.7650 Y-19.5343 I-3.0447 J14.9448
G03 X-15.9860 Y-19.3079 I-3.5398J13.6292
G03 X-15.2222 Y-19.0349 I-3.9257J12.1873
G03 X-14.4785 Y-18.7112 I-4.1673J10.5929
G03 X-13.7618 Y-18.3315 I-4.2057 J8.8022
G03 X-13.0836 Y-17.8870 I-3.9232 J6.7265
G03 X-12.4680 Y-17.3600 I-2.9620 J4.0828
G02 X-11.8878 Y-16.7962 I2.4757 J-1.9674
G02 X-11.1377 Y-16.5133 I0.8934 J-1.2329
G02 X-10.3612 Y-16.6964 I0.1089 J-1.2763
G03 X-10.0629 Y-16.8779 I10.3612J16.6964
G02 X-9.5432 Y-17.4833 I-0.6638 J-1.0956
G02 X-9.4495 Y-18.2795 I-1.4119 J-0.5698
G02 X-9.6834 Y-19.0539 I-3.1193 J0.5195
G03 X-9.8684 Y-19.8429 I4.8026 J-1.5421
G03 X-9.9512 Y-20.6496 I7.6943 J-1.1978
G03 X-9.9589 Y-21.4606 I9.7426 J-0.4986
G03 X-9.9044 Y-22.2698 I11.3774 J0.3606
G03 X-9.7956 Y-23.0737 I12.7364 J1.3137
G03 X-9.6386 Y-23.8695 I13.8877 J2.3274
G03 X-9.4378 Y-24.6554 I14.8722 J3.3818
G03 X-8.0177 Y-25.1531 I9.4378 J24.6554
G03 X-7.3702 Y-24.6644 I-8.8601 J12.4144
G03 X-6.7507 Y-24.1407 I-8.7773 J11.0111
G03 X-6.1640 Y-23.5807 I-8.5433 J9.5369
G03 X-5.6162 Y-22.9825 I-8.1155 J7.9821
G03 X-5.1160 Y-22.3441 I-7.4223 J6.3306
G03 X-4.6772 Y-21.6622 I-6.3199 J4.5493
G03 X-4.3292 Y-20.9303 I-4.3665 J2.5251
G02 X-4.0284 Y-20.1793 I3.0619 J-0.7904
G02 X-3.4582 Y-19.6158 I1.3176 J-0.7630
G02 X-2.6743 Y-19.4672 I0.6186 J-1.1217
G03 X0.0000 Y-19.6501 I2.6743 J19.4672
G01 X0.0000 Y-26.2134
G40G01 X-26.6140 Y0.0000
M02
gearwire.vlx----外齿轮线切割程序，全自动地生成外齿轮AutoCAD图及线切割G代码加工程序。
igearwire.vlx----内齿轮线切割程序，全自动地生成内齿轮AutoCAD图及线切割G代码加工程序。
3Bgearwire.vlx----外齿轮线切割程序，全自动地生成外齿轮AutoCAD图及线切割G代码和3B代码加工程序。
3Bigearwire.vlx----内齿轮线切割程序，全自动地生成内齿轮AutoCAD图及线切割G代码和3B代码加工程序。
Cycloidwire.vlx----摆线针轮线切割程序，全自动地生成摆线针轮行星AutoCAD图及线切割G代码和3B代码加工程序。
3Bwire-l-arc.vlx----线切割快走丝程序，用法同wire-l-arc.vlx，同时生成线切割G代码和3B代码加工程序。割line和arc，同时生成线切割慢走丝G代码和快走丝3B代码加工程序。
3Bwire-l-arc-pl.vlx----线切割快走丝程序，用法同wire-l-arc-pl.vlx，同时生成线切割G代码和3B代码加工程序。割line,arc和pline，同时生成线切割慢走丝G代码和快走丝3B代码加工程序。
3Bwire-l-arc-pl-sp-el.vlx----线切割快走丝程序，用法同wire-l-arc-pl-sp-el.vlx，同时生成线切割G代码和3B代码加工程序。割line,arc,pline,spline和ellipse，同时生成线切割慢走丝G代码和快走丝3B代码加工程序。
3Bwire-l-arc-sp-el.vlx----线切割快走丝程序，用法同wire-l-arc-sp-el.vlx，同时生成线切割G代码和3B代码加工程序。割line,arc,spline和ellipse，同时生成线切割慢走丝G代码和快走丝3B代码加工程序。
Wire-circle.vlx ----线切割程序，慢走丝割圆, 生成线切割慢走丝G代码.
3bwire-circle.vlx ----线切割程序，快走丝割圆，同时生成线切割慢走丝G代码和快走丝3B代码加工程序。
Lenth.vlx----计算走丝切割工件的轨迹长度
Check.vlx----由G代码加工程序画出DWG图
Check3B.vlx----由3B代码加工程序画出DWG图
Sp-or-ellipse-to-arc.vlx----样条或椭圆（弧）转化为圆弧
Sp-to-line.vlx----样条转化为直线
L-arc-to-pl.vlx----直线和圆弧转化为多段线pline（或者pedit的join连接命令）
Explode----多段线pline转化为直线和圆弧的命令
crec.vlx----矩形程序,输入矩形中心点，长度和宽度。AutoCAD缺少一个以矩形中心点定位画矩形的命令，这个矩形程序填补此缺陷。
ncpassword.vlx----注册命令.加载后,执行ncpassword命令(在AutoCAD的命令Command:下,输入ncpassword命令). 要获取注册码,请把你的电脑的Computer_id、user_id发邮件到13612869902@139.com,或发手机短信到13612869902.例如,Computer_id:15238017306 User_id:4345-7704-1268-2064.执行gearpassword命令后,Computer_id、user_id会显示在电脑上,可复制后发邮件或发手机短信.
在执行ncpassword命令后,在text窗口上打印出:
~~~~~~~~~~~~~~~~~~~~~~~齿轮线切割演示程序
Gearwiredemo.vlx----齿轮线切割演示程序，全自动地生成齿轮AutoCAD图及线切割G代码加工程序。
3Bgearwiredemo.vlx----齿轮线切割演示程序，全自动地生成齿轮AutoCAD图并同时生成线切割G代码和3B代码加工程序。
Igearwiredemo.vlx----内齿轮线切割演示程序，全自动地生成内齿轮AutoCAD图及线切割G代码加工程序。
3B igearwiredemo.vlx----内齿轮线切割演示程序，全自动地生成内齿轮AutoCAD图及线切割G代码和3B代码加工程序。
Cycloidwiredemo.vlx----摆线针轮线切割演示程序，全自动地生成摆线针轮行星AutoCAD图及线切割G代码和3B代码加工程序
